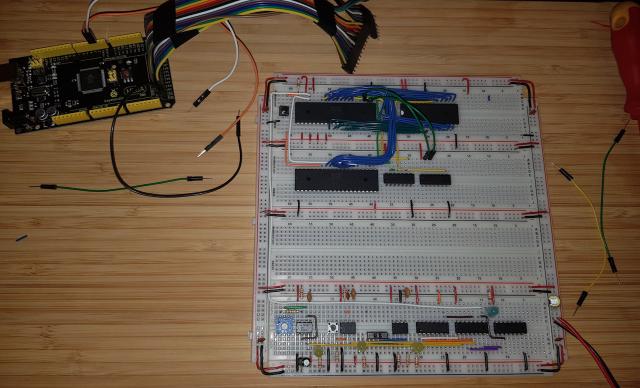

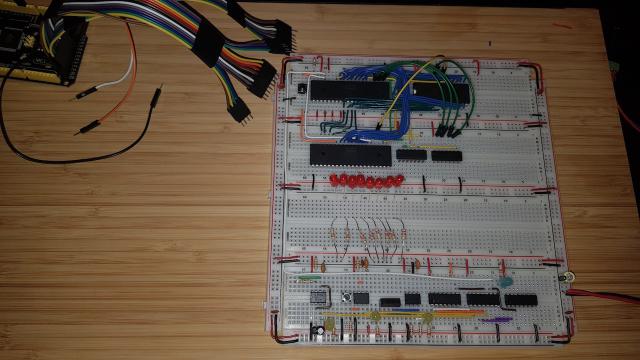

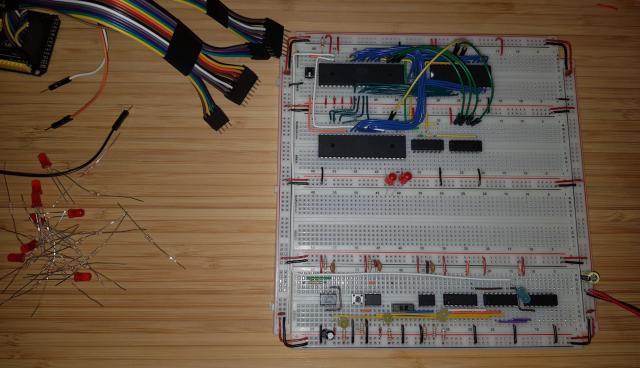

Ben Eater 6502 Kit — Day 12 – Add VIA (Versatile-Interface-Adapter)

with Ada.Sequential_IO;
with Ada.IO_Exceptions;
with Ada.Command_Line;
with Ada.Text_IO;
with Interfaces;

procedure Create_LED is

   type Byte is new Interfaces.Unsigned_8;
   type Address is new Interfaces.Unsigned_16;

  --  One of the cool feature of Ada is it's ability to set the lower and
  --  upper bound of an array to any value you want. So we can set use the
  --  actual ROM addresses as array index an save ourself the work and
  --  remove one potential error source.
  --
   type ROM_Type is
      array (Address range 16#8000# .. 16#FFFF#)
      of Byte;

   package ROM_IO is new Ada.Sequential_IO (ROM_Type);

   ROM_Output : ROM_IO.File_Type;

  --  65C02 related constants as named in the original
  --  WDC design document
  --
   NOP  : constant Byte    := 16#EA#;
   NMIB : constant Address := 16#FFFA#;
   RESB : constant Address := 16#FFFC#;
   IRQB : constant Address := 16#FFFE#;

  --  Another interesting feature Ada arrays is specifying the index of
  --  elements when initialising the array. As well specifying an value
  --  for all not explicitly initialised values. Makes setting up the
  --  ROM array super easy.
  --

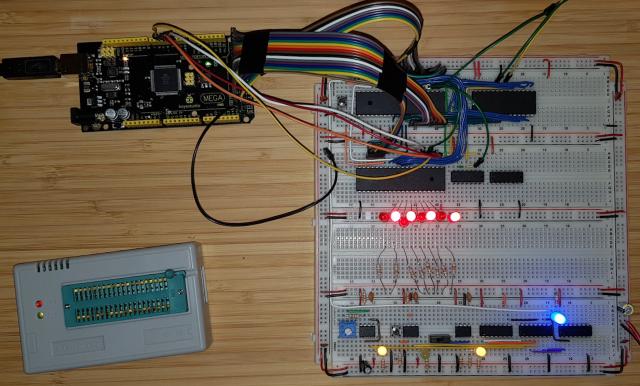

   ROM : constant ROM_Type :=
      (16#8000# => 16#A9#,  --  LDA #$FF
       16#8001# => 16#FF#,
       16#8002# => 16#8D#,  --  STA $7F02
       16#8003# => 16#02#,
       16#8004# => 16#7F#,
       16#8005# => 16#A9#,  --  LDA #$55
       16#8006# => 16#55#,
       16#8007# => 16#8D#,  --  STA $7F00
       16#8008# => 16#00#,
       16#8009# => 16#7F#,
       16#800A# => 16#A9#,  --  LDA #$AA
       16#800B# => 16#AA#,
       16#800C# => 16#8D#,  --  STA $7F00
       16#800D# => 16#00#,
       16#800E# => 16#7F#,
       16#800F# => 16#4C#,  --  JMP $8005
       16#8010# => 16#05#,
       16#8011# => 16#80#,
       NMIB + 0 => 16#00#,  --  .word $8000
       NMIB + 1 => 16#80#,
       RESB + 0 => 16#00#,  --  .word $8000
       RESB + 1 => 16#80#,
       IRQB + 0 => 16#00#,  --  .word $8000
       IRQB + 1 => 16#80#,
       others   => NOP);

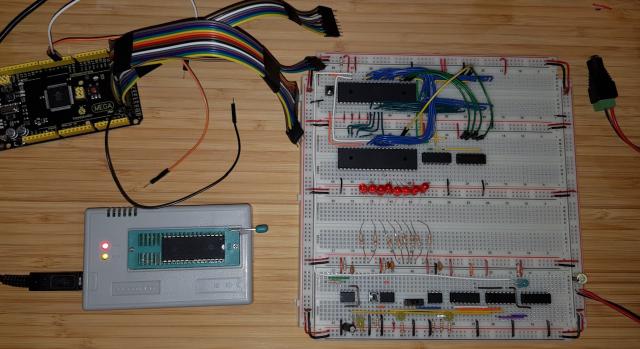

begin
   if Ada.Command_Line.Argument_Count < 1 then
      Ada.Text_IO.Put_Line ("Syntax: Create_LED <output file>");
   else
      declare
         File_Name : constant String := Ada.Command_Line.Argument (1);
      begin
         ROM_IO.Create (ROM_Output, ROM_IO.Out_File, File_Name);
      exception
         when Ada.IO_Exceptions.Name_Error =>
            Ada.Text_IO.Put_Line ("File “" & File_Name & "” couldn't be created.");
            Ada.Text_IO.Put_Line ("See stack trace below for more details.");
            raise;
      end;

     --  Just like Python Ada can write the whole array in one go.
     --
      ROM_IO.Write (ROM_Output, ROM);
      ROM_IO.Close (ROM_Output);
   end if;
end Create_LED;

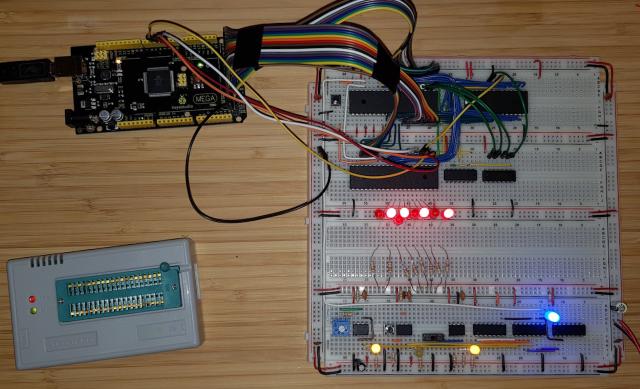

#include <USBAPI.h>

/**
 * Bus class handles reading the 6502 address and data bus
 */
class Bus
{
private:
    /**
     * Size of the 6502 bus (16 for address bus and 8 for data bus).
     */
    size_t const Size;
    /**
     * Arduino I/O lines the 6502 bus is connected to.
     */
    byte const* Lines;

public:
    /**
     * initialise Bus.
     *
     * @param Size of the 6502 bus (16 for address bus and 8 for data bus).
     * @param Arduino I/O lines the 6502 bus is connected to.
     */
    Bus (const byte Lines[], size_t Size) :
        Size (Size),
        Lines (Lines)
    {
    } // Bus

    /**
     * initialize the Arduino I/O lines used to monitor the 6502 bus to INPUT.
     */
    void Init () const
    {
        for (size_t i = 0;
             i < Size;
             i++)
        {
            pinMode (Lines[i], INPUT);
        } // for

        return;
    } // Init

    /**
     * read the but date from the Arduino I/O lines.
     *
     * @return value read.
     */
    word Read () const
    {
        word Retval = 0;

        for (size_t i = 0;
             i < Size;
             i++)
        {
            auto bit = digitalRead (Lines[i]) == HIGH ? 1 : 0;

            Serial.print (bit);

            Retval = (Retval << 1) + bit;
        } // for

        Serial.print (" ");

        return Retval;
    } // Read
};

/**
 * Address bus
 */
static Bus const A = Bus (
    (byte[16]) {22, 24, 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52},
    16);

/**
 * Data bus
 */
static Bus const D = Bus (
    (byte[8]) {39, 41, 43, 45, 47, 49, 51, 53},
    8);

/**
 * Clock pin
 */
static byte const PHI2 = 2;

/**
 * executed at every clock pulse of the monitored 6502
 */
static void On_Clock ();

/**
 * VIA read/write pin. (read high, write low)
 */
static byte const RWB = 3;

/**
 * VIA Chip select one pin. (active high)
 */
static byte const CS1 = 4;

/**
 * VIA chip select two pin. (active low)
 */
static byte const CS2B = 5;

/**
 * Setup Arduino
 */
extern void setup ()
{
    Serial.begin (115200);
    Serial.println ();
    Serial.println ("Start 6502 Monitor");

    // Setup address bus pins
    //
    A.Init ();

    // Setup data bus pins
    //
    D.Init ();

    // Setup clock pin
    //
    pinMode (PHI2, INPUT);
    attachInterrupt (digitalPinToInterrupt (PHI2), On_Clock, RISING);

    // Setup read/write pin
    //
    pinMode (RWB, INPUT);

    return;
} // setup

extern void loop ()
{
    // do nothing

    return;
} // loop

/**
 * executed at every clock pulse of the monitored 6502
 */
static void On_Clock ()
{
    auto Address = A.Read ();
    auto Data = D.Read ();
    auto Read_Write    = digitalRead (RWB)  == HIGH ? 'r' : 'W';
    auto Chip_Enable_1 = digitalRead (CS1)  == HIGH ? 'E' : 'd';
    auto Chip_Enable_2 = digitalRead (CS2B) == LOW  ? 'E' : 'd';
    char Output[15];

    snprintf (
      Output,
      sizeof Output,
      "%04x %c %c %c %02x",
      Address,
      Read_Write,
      Chip_Enable_1,
      Chip_Enable_2,
      Data);
    Serial.println (Output);

    return;
} // On_Clock
