Ben Eater 6502 Kit — Day 04 – Switch De-bouncing

We have two clocks, now we need a way to switch between the two. Switches are not as often debounced as buttons but in this case it needs to be done. Ben Eater explains in the video why.

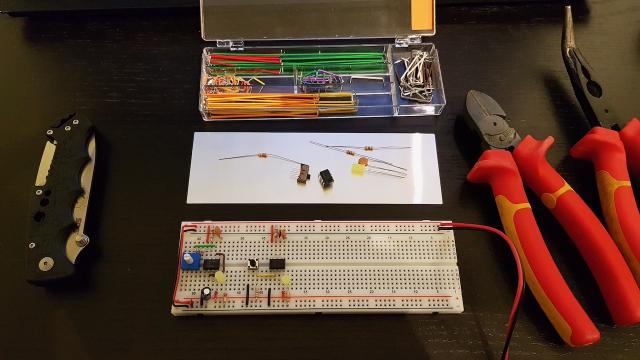

The parts for today Placing the fist parts

You might notice that I moved the parts yesterday around to save some space on the board. There is quite a bit of logic yet to come and I didn’t want to use more then half the board up to this point.

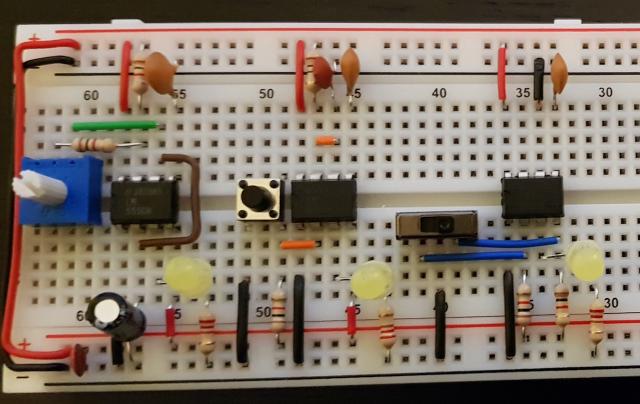

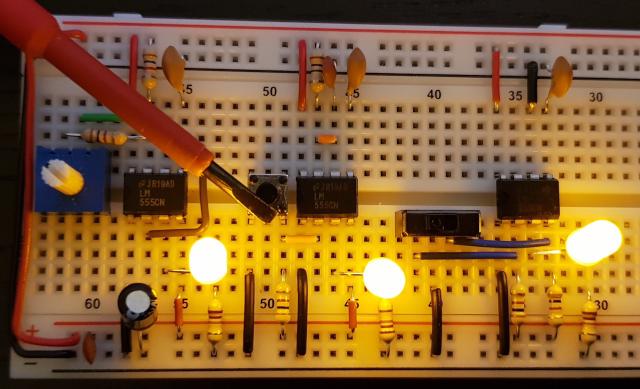

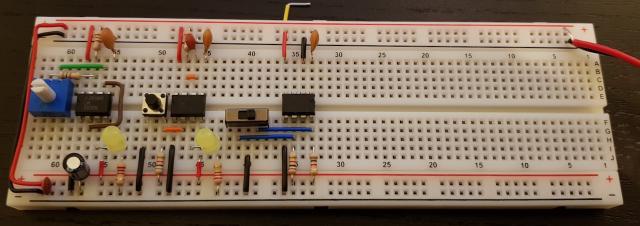

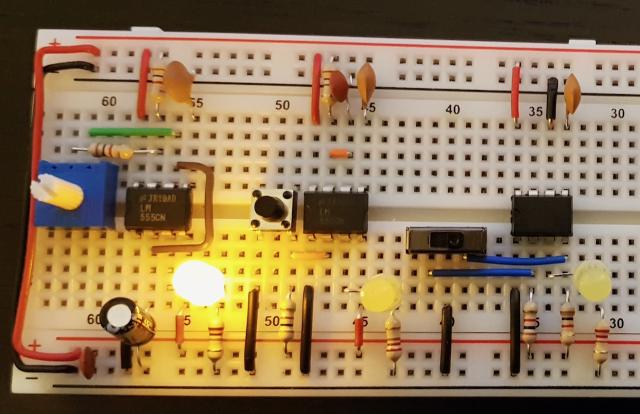

Finished placing all the parts All LED off. All LED on

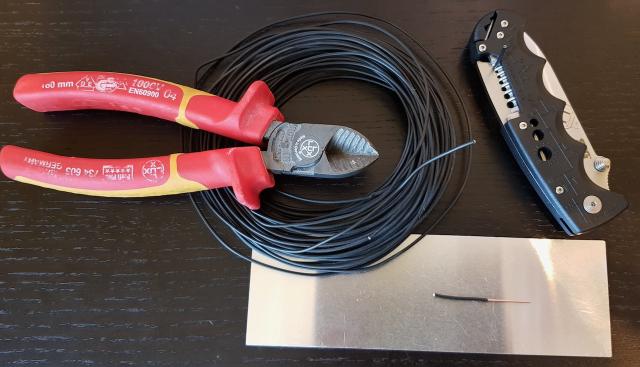

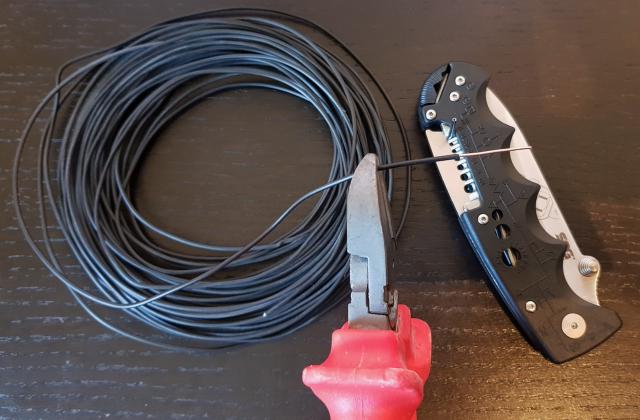

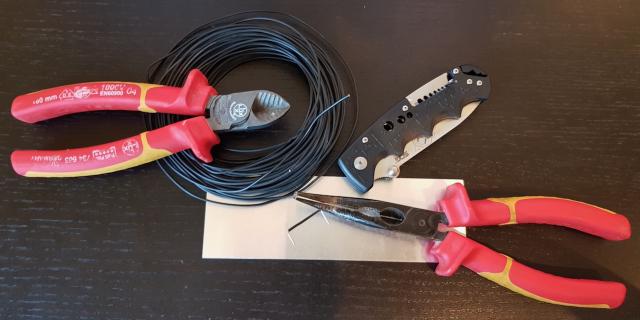

Hint: To create a connector you strip a double length of wire on one end and then cut the wire at the desired length. After you cut the wire you can move the insulation to the middle.
